DOOR CLOSERS DOOR CLOSERS

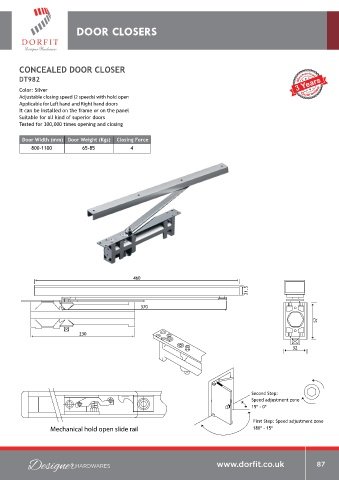

DT3000A CONCEALED DOOR CLOSER

Color: Silver 3 Years DT982 3 Years
Adjustable closing speed (2 speeds) Color: Silver
Applicable for Left hand and Right hand doors Adjustable closing speed (2 speeds) with hold open
It can be installed on the frame or on the panel Applicable for Left hand and Right hand doors
Tested for 300,000 times opening and closing It can be installed on the frame or on the panel
Suitable for all kind of superior doors
Door Width (mm) Door Weight (Kgs) Closing Force A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) Tested for 300,000 times opening and closing
900-1200 65-85 4 210 60 40.5 43 50 76
Door Width (mm) Door Weight (Kgs) Closing Force
800-1100 65-85 4

40
245 C 460
40
8.5 21.5
Door frame
30 106 D
Hinge Door B 370

57
F E E
A 230

A 32

C

Second Step:
B Speed adjustment zone
15º - 0º

First Step: Speed adjustment zone
Mechanical hold open slide rail 180º - 15º
