P. 91
PANIC DOOR FITTINGS PADLOCKS PADLOCKS

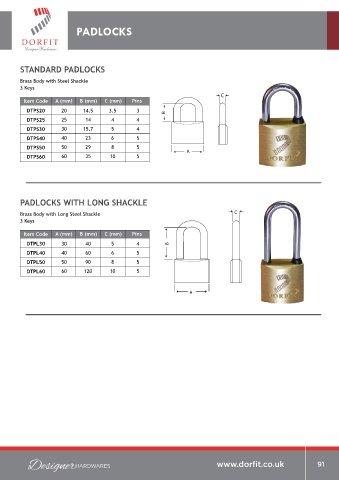

LEVER TRIM STANDARD PADLOCKS
DTPD012 Brass Body with Steel Shackle
Stainless Steel SUS 304 3 Keys
Finish: Stainless Steel C
3 Keys Item Code A (mm) B (mm) C (mm) Pins
Applicable for Wooden & Metal Doors DTPS20 20 14.5 3.5 3
Suitable for Fire Rated Doors B
DTPS25 25 14 4 4
DTPS30 30 15.7 5 4
DTPS40 40 23 6 5
Ø 75
DTPS50 50 29 8 5
41 A
DTPS60 60 35 10 5
55 38 PADLOCKS WITH LONG SHACKLE
Brass Body with Long Steel Shackle C
132
3 Keys
Item Code A (mm) B (mm) C (mm) Pins
DTPL30 30 40 5 4 B
DTPL40 40 60 6 5
OUTSIDE ACCESS DEVICE DTPL50 50 90 8 5
DTPD013 DTPL60 60 120 10 5
Stainless Steel SUS 304
Finish: Stainless Steel
Applicable for Wooden & Metal Doors A
Suitable for Fire Rated Doors
47
140
22
210
139
90 Designer HARDWARES www.dorfit.co.uk Designer HARDWARES www.dorfit.co.uk 91
