Page 83 - La Decor LLC - Quality Incomparable

FLOOR SPRINGS DOOR CLOSERS

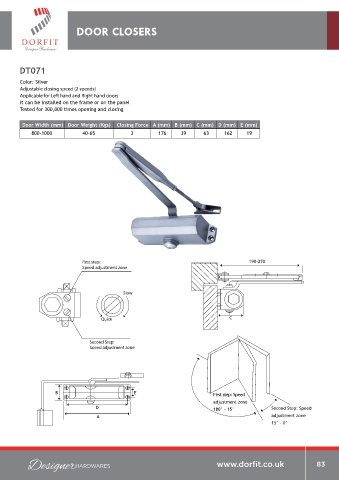

FLOOR SPRING DT071
DT3035 Color: Silver

Top Cover Stainless Steel 202 Adjustable closing speed (2 speeds) 3 Years
Finish: Polished Stainless Steel (PSS) Applicable for Left hand and Right hand doors
Hold Open at 90° (either direction) It can be installed on the frame or on the panel
Maximum Door Weight: 130 Kgs Tested for 300,000 times opening and closing
Maximum Door Width: 1200 mm
Door Width (mm) Door Weight (Kgs) Closing Force A (mm) B (mm) C (mm) D (mm) E (mm)
800-1000 40-65 3 176 39 63 162 19

135

278
First step: 190-270
Speed adjustment zone

Slow
68

Quick C
278

Second Step:
Speed adjustment zone

B E First step: Speed
adjustment zone
D 180° - 15° Second Step: Speed
A adjustment zone
15° - 0°

82 Designer HARDWARES www.dorfit.co.uk Designer HARDWARES www.dorfit.co.uk 83
